Columbus Elevator Buckets

The Columbus elevator bucket is according to DIN15232 and available in pressed (stainless) steel and plastic PE (white)/Nylon (green).

Columbus Steel

The steel buckets are seamlessly pressed from one piece and are available in an ST 37 version as well as in stainless steel 1.4301 / 1.4401 / 1.4571. These cups are equipped with standard recessed holes. Buckets with deviating holes or without holes are also available at short notice.

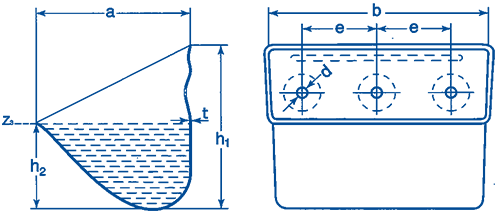

Steel Columbus elevator buckets (parameters in mm)
Type	Size/Weight						Volume	Holes			Max.
	b	a	h1	h2	t	Kg	Z3	d	e	Nr	bckts/m
Columbus 80 x 1	80	75	80	40	1	0.125	0.16	8	43	2	10
Columbus 90 x 1	90	80	85	45	1	0.155	0.22	8	46	2	9
Columbus 100 x 1	100	90	91	48	1	0.18	0.27	8	58	2	8.5
Columbus 110 x 1	110	95	95	50	1	0.21	0.32	8	64	2	8
Columbus 120 x 1	120	100	105	55	1	0.25	0.42	8	67	2	8
Columbus 130 x 1	130	105	110	58	1	0.3	0.5	8	78	2	7
Columbus 140 x 1	140	115	117	63	1	0.33	0.63	8	86	2	6.5
Columbus 150 x 1	150	125	123	66	1	0.36	0.77	8	87	2	6
Columbus 160 x 1,5	160	125	126	70	1.5	0.57	0.89	8	101	2	5.5
Columbus 180 x 1,5	180	130	130	76	1.5	0.67	1.05	9	110	2	5.5
Columbus 200 x 1,5	200	140	145	88	1.5	0.84	1.45	9	131	2	5
Columbus 225 x 1,5	225	145	153	90	1.5	1.01	1.83	9	70	3	5
Columbus 225 x 2	225	145	153	90	2	1.3	1.83	9	70	3	5
Columbus 250 x 1,5	250	150	158	92	1.5	1.12	2.11	9	77	3	5
Columbus 250 x 2	250	150	158	92	2	1.46	2.11	9	77	3	5
Columbus 300 x 1,5	300	155	160	95	1.5	1.35	2.84	9	104	3	4.5
Columbus 300 x 2	300	155	160	95	2	1.74	2.84	9	104	3	4.5
Columbus 350 x 1,5	350	180	190	100	1.5	2	4.03	11	90	4	4
Columbus 350 x 2	350	180	190	100	2	2.35	4.03	11	90	4	4
Columbus 400 x 2	400	200	212	112	2	3.35	5.6	11	100	4	3
Columbus 500 x 3	500	224	236	125	3	7.2	9	14	100	5	3

Z3 = net Volume in liters

The buckets are available in different thicknesses t = 2,5 and 3,0 mm.

Please note the holes can differ from DIN 15232.

Columbus Plastic

The Columbus elevator buckets made of plastic are better suited for conveying wet or sticky materials and are available in two versions. The white HDP version can withstand maximum temperatures of 60 ° C. The green Columbus elevator beaker made of nylon is heat resistant up to a maximum temperature of 90 ° C. The following table shows the standard sizes of the Columbus elevator buckets made of plastic. Please pay attention to the possibly different hole distances to the steel cups.

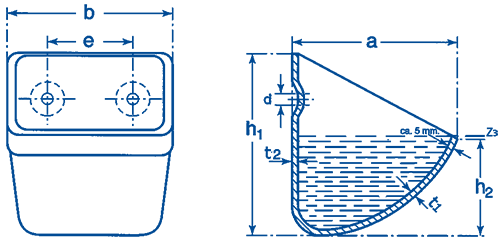

Polypropylene (white) Columbus elevator buckets (parameters in mm)
Type	Size/weight						Volume	Holes			Max.
	b	a	h1	h2	t1 – t2	Kg	Z3	d	e	Nr	bckts/m
Columbus 80	85	78	79	42	2,0 – 2,0	0.032	0.13	8	45	2	10
Columbus 100	106	93	96	50	2,0 – 2,0	0.058	0.25	8	48	2	8
Columbus 120	120	106	104	50	2,5 – 2,5	0.082	0.35	8	63	2	8
Columbus 140	145	115	120	60	2,5 – 2,5	0.116	0.55	8	80	2	6.5
Columbus 160	170	130	135	75	3,0 – 3,0	0.158	0.85	8	96	2	5.5
Columbus 180	190	135	140	75	3,0 – 3,0	0.194	1.1	8	104	2	5.5
Columbus 200	215	145	145	75	3,0 – 4,0	0.25	1.25	10	118	2	5
Columbus 250	265	170	168	80	3,5 – 4,0	0.368	2.1	10	77	3	4
Columbus 315	315	193	196	104	4,0 – 5,0	0.628	3.35	11	110	3	4
